BADU 42/18, 400 V
€685.00
Available in 1 day, delivery time 2-4 days
Product information "BADU 42/18, 400 V"

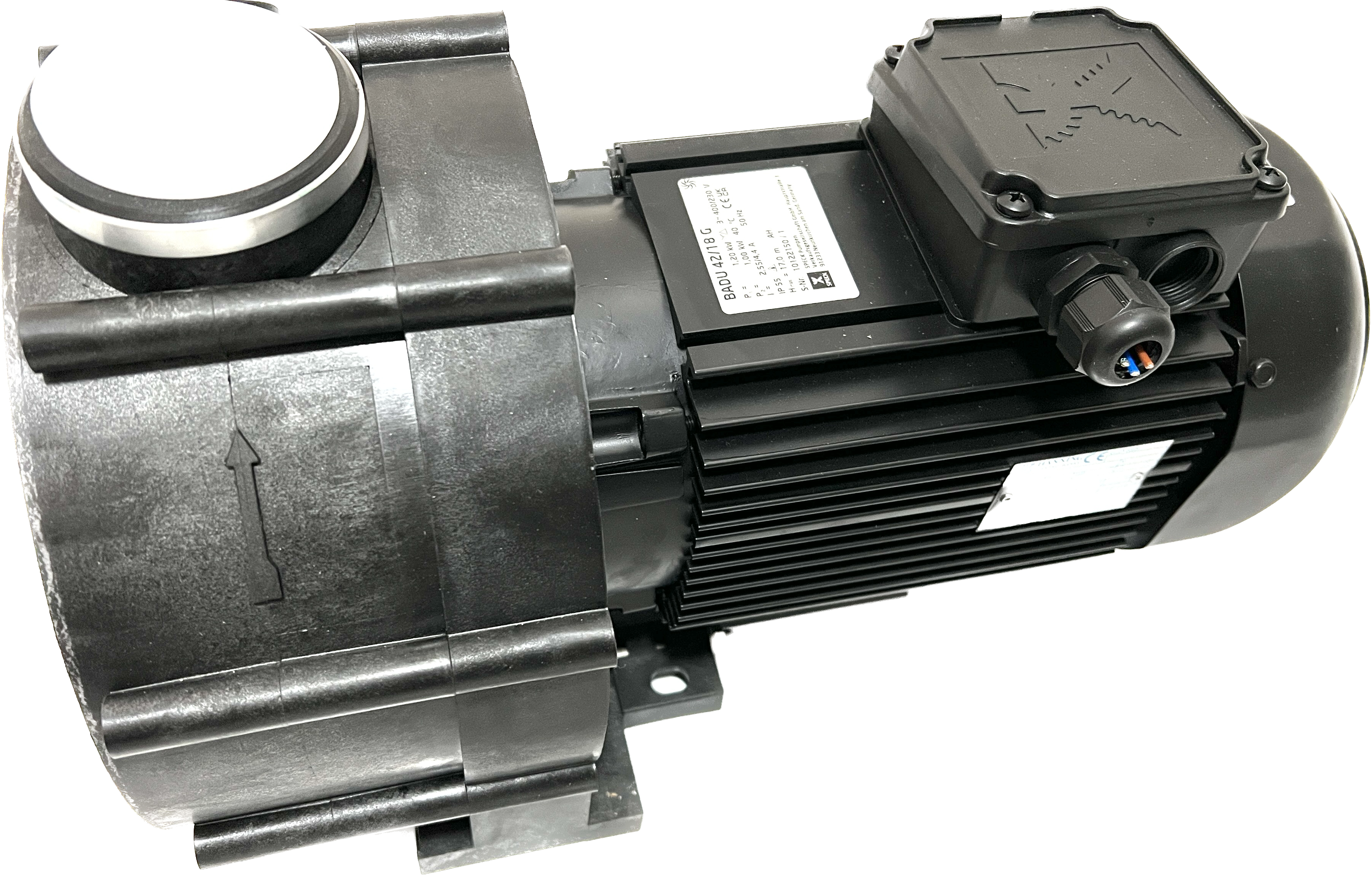

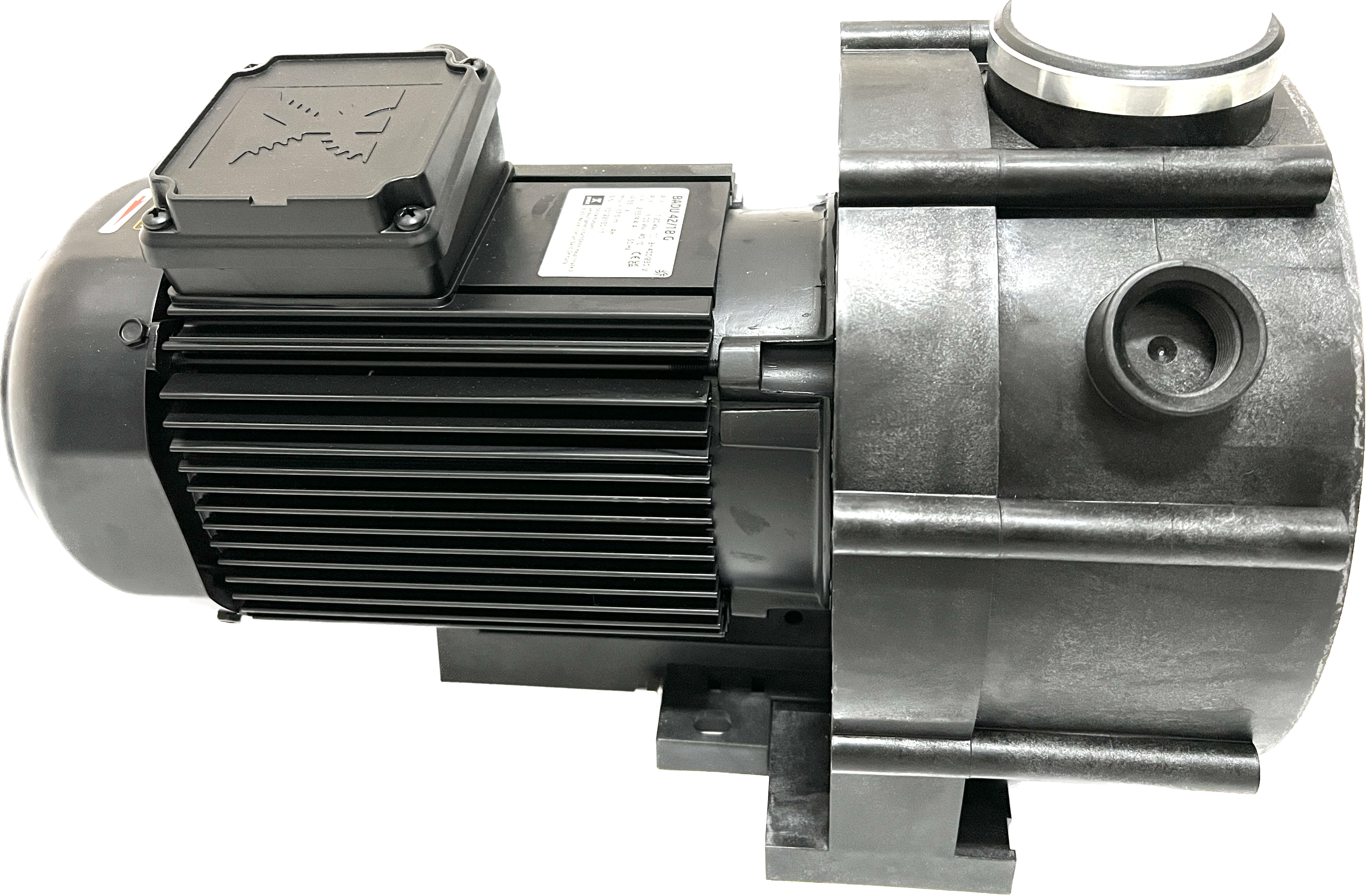

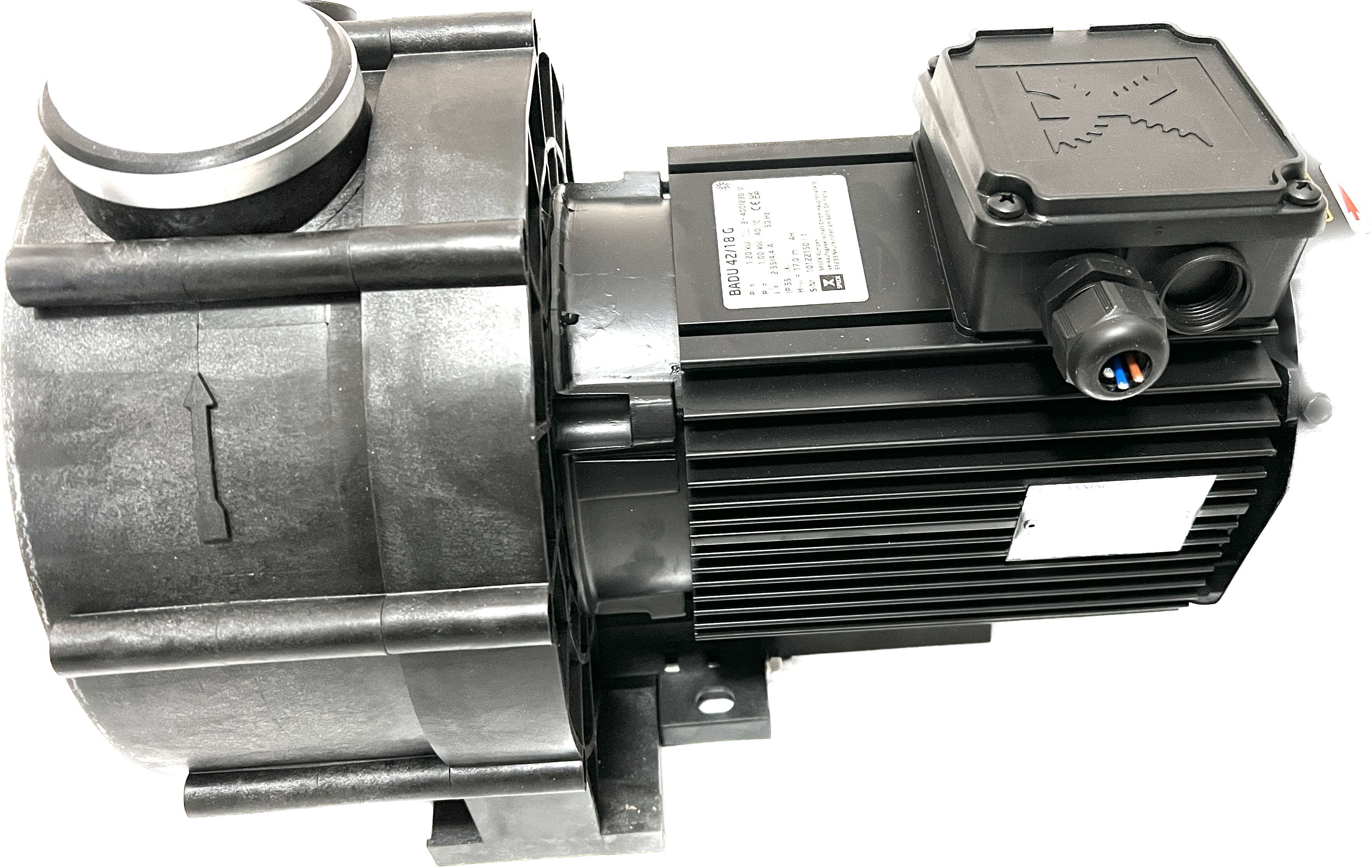

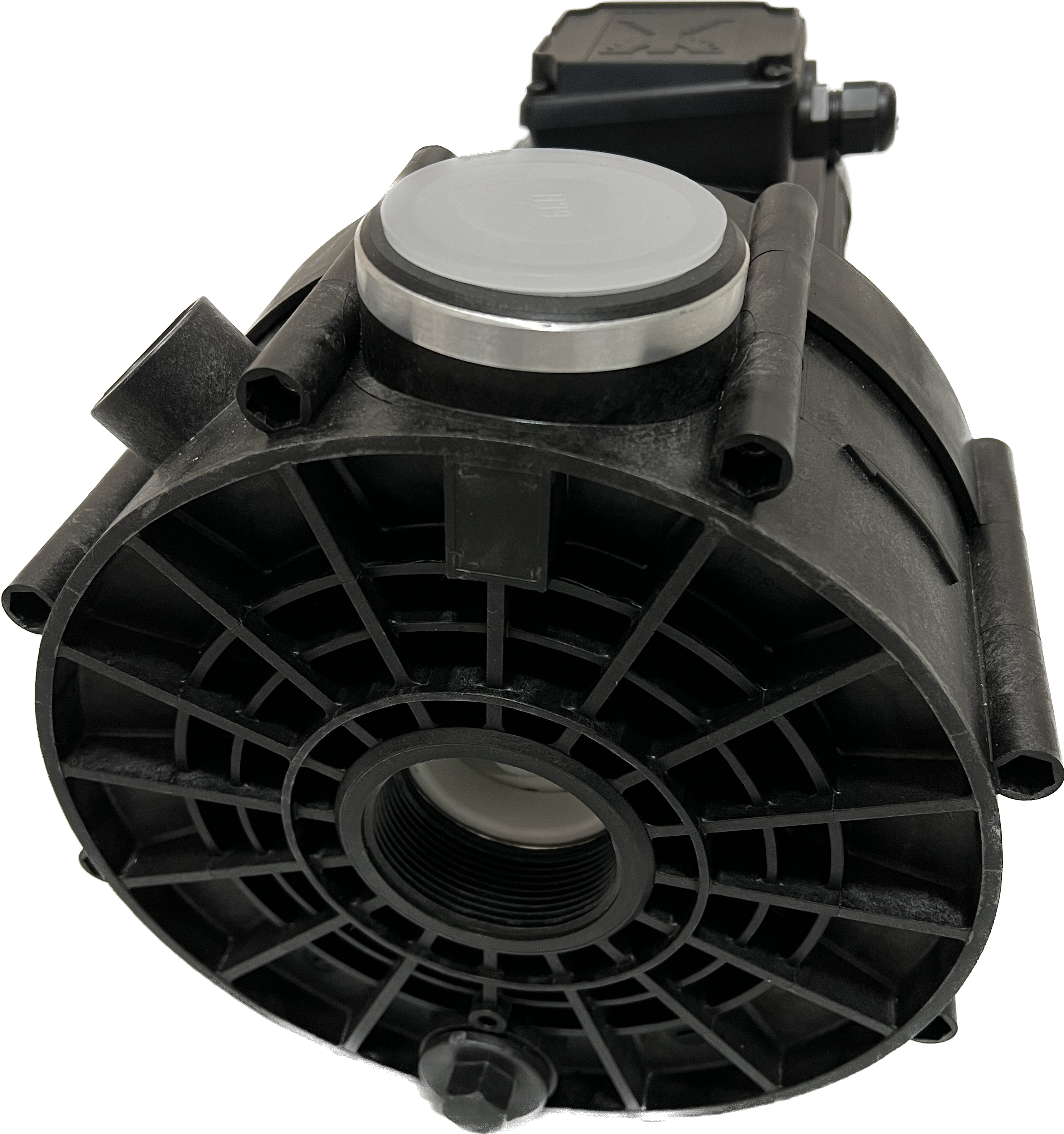

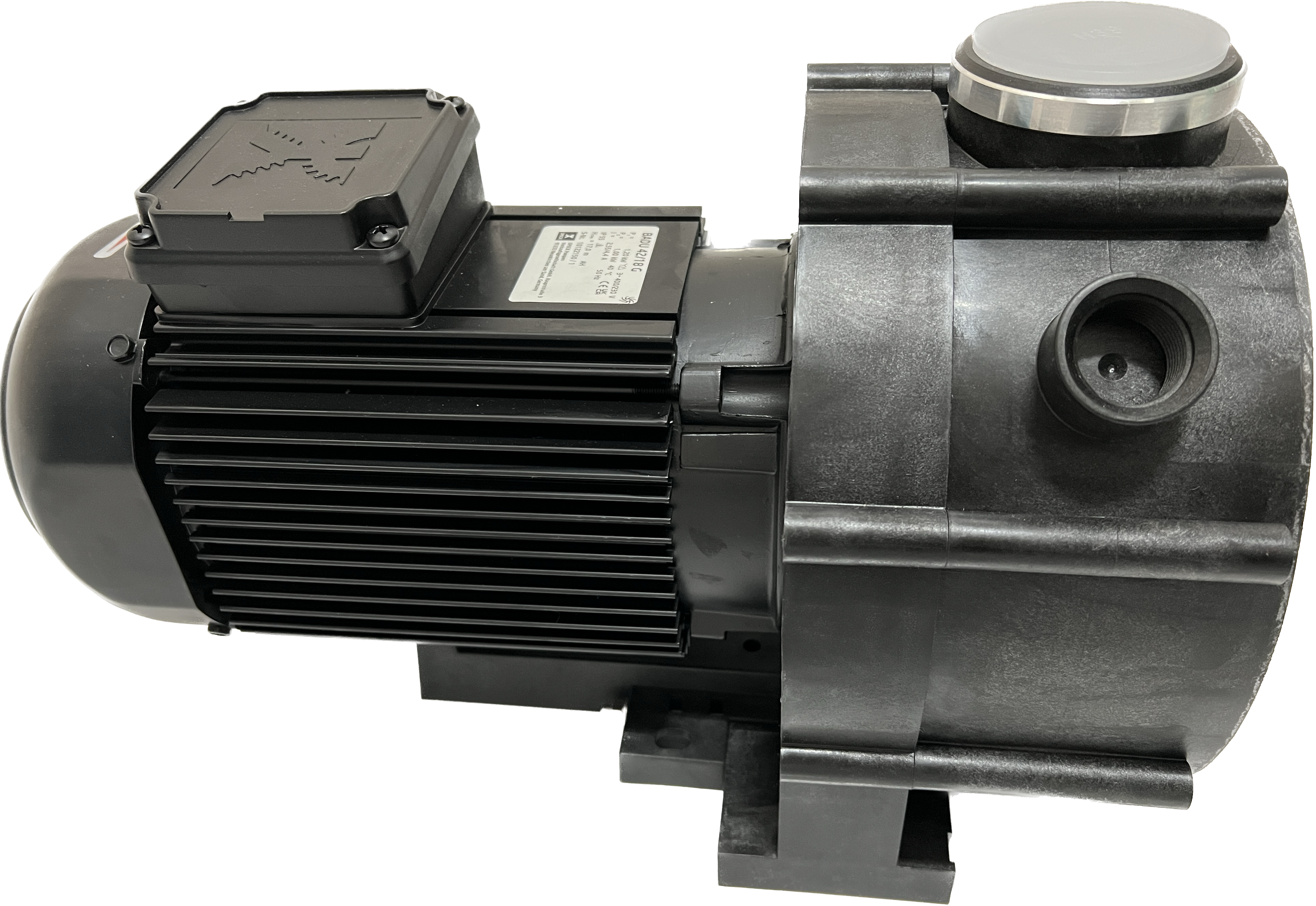

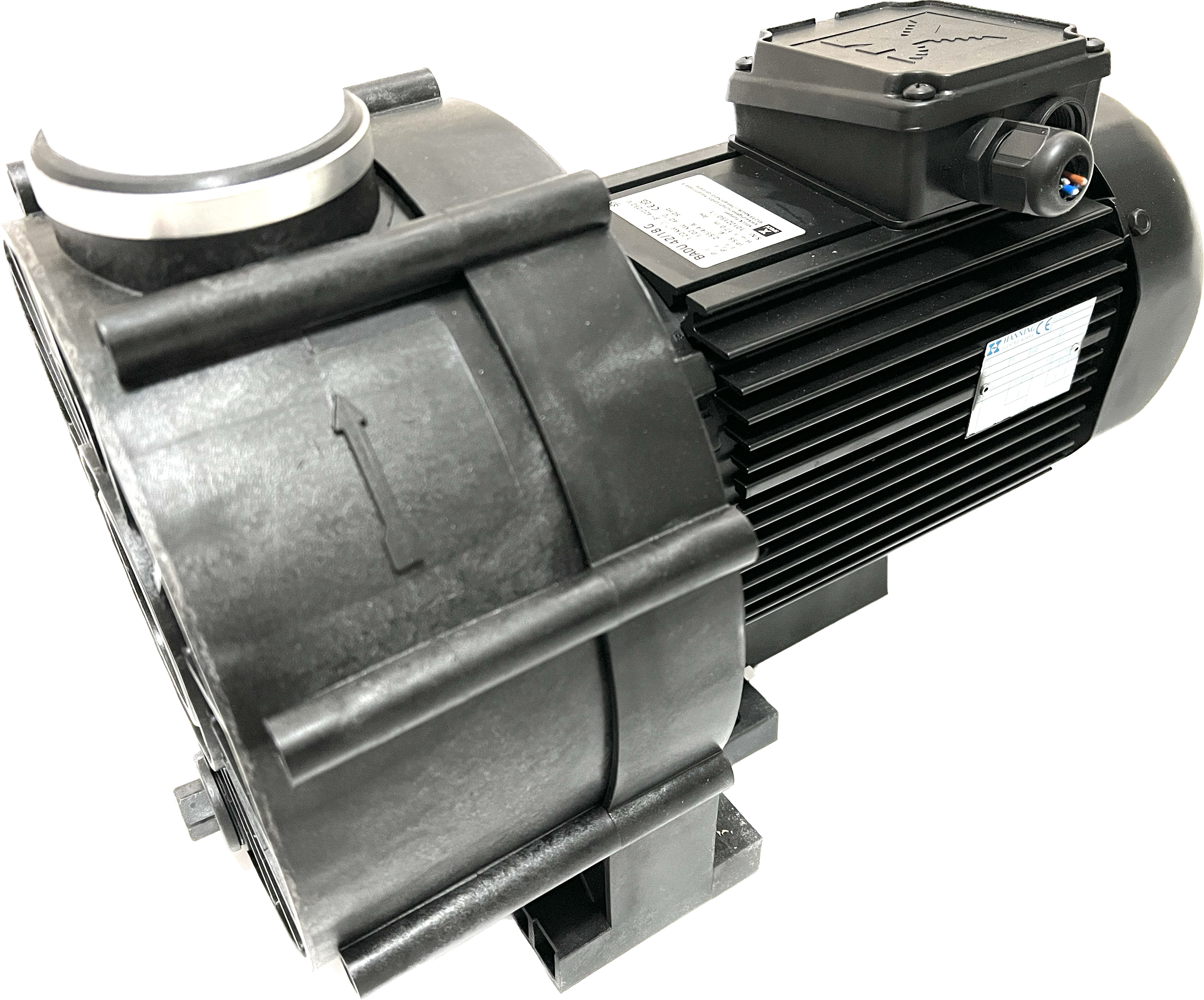

Non self-priming pool circulation pump BADU 42/18 G Dr., three-phase version, for use with bath tubs and whirlpools
3~Y/Δ 400/230 Volt
Hmax= approx. 17 m
Qmax= approx. 24 m³/h
techQ: approx. 18 m³/h
techH: approx. 9 m WS
Power input P1: 1.2 kW / Power output P2: 1.00 kW
Inlet (Sa) / outlet (Da) connection (Rp): female thread 2 / 2
| Flow rate Q in m³/h: | 18 |
| Total head H in m WS: | 9 |
| Motor performance in kW (P2): | 1.00 |
| Pump casing: | PP GF 30 |
| Gland housing: | PP GF 30 |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | Galvanised steel |
Jet pump and additional pump, for bath tubs and whirlpools.
BADU 42/13 G and BADU 42/18 G are the perfect jet pumps for bath tubs and whirlpools.
Monoblock-type pump with a closed bellows-type mechanical seal mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water! Complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
