BADU Profi 48, 230 V
€1,720.00
Available in 1 day, delivery time 2-4 days
Product information "BADU Profi 48, 230 V"
Self-priming filtration circulation pump BADU Profi 48, 230 V, alternating current version, designed for professional use
1~ 230 V

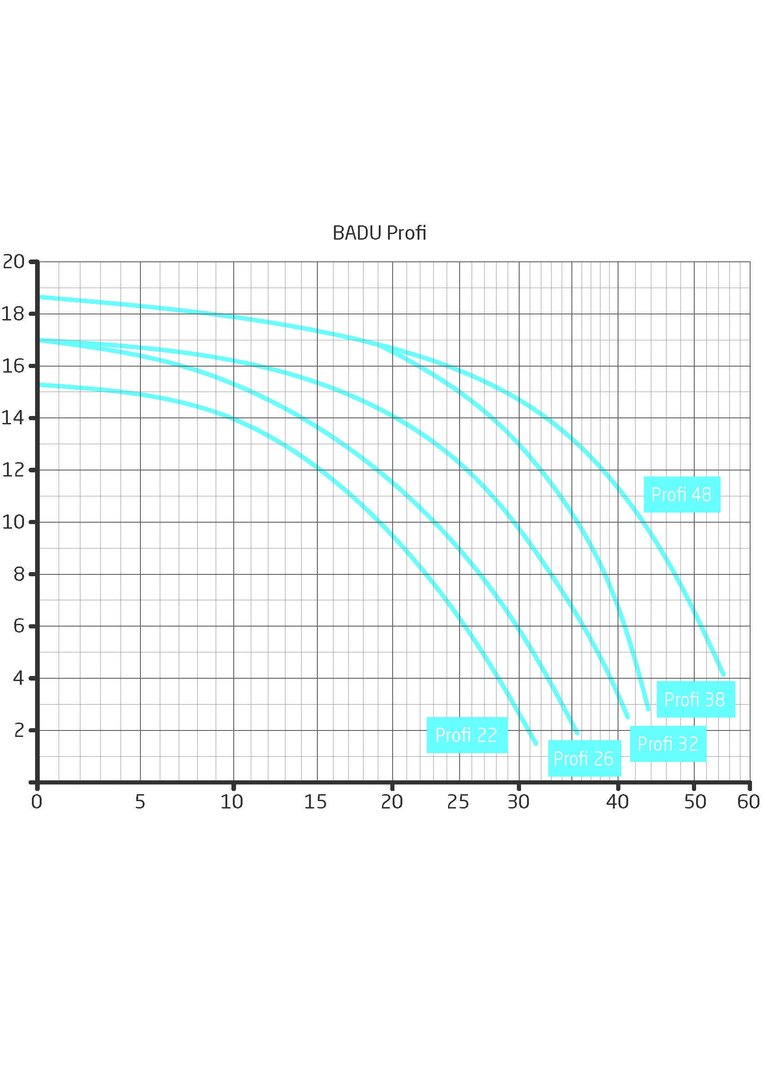

H max. = ca. 18.7 m
Q max. = ca. 55 m³/h
techQ: 48 m³/h
techH: 8 m WS
Motor performance in kW (P2): 2.20
Inlet / outlet connection(d): 75/75 outside, 63/63 inside
| Pool equipment: | Circulation pump |
| Pool size in m³: | 90 - 210 |
| Filter size in mm: | larger than 1100 |
| Flow rate Q in m³/h: | 48 |
| Total head H in m WS: | 8 |
| Motor performance in kW (P2): | 2.20 |
| Strainer capacity in l: | ca. 4 |
| Strainer basket mesh size in mm: | ca. 2,2 x 2,2 |
| Pool type: | Indoor pool |
| Installation: | Built-in pool |
| Class: | PREMIUM |
| Guarantee: | 5 year premium guarantee |
| Pump casing: | PP GF 30 |
| Diffuser: | PA 66 GF 30/PP GF 30 |
| Impeller: | PP GF 30 |
| Strainer basket: | PP |
| Screws: | stainless steel |
| Intermediate housing: | PP GF 30 |
Swimming pool pumps with consistently high quality optics for the pump housing and motor block provide an exclusive product design. Through elaborate flow studies and tests, it was possible to design new, highly efficient hydraulics. Thus, significantly higher capacities than with previous ranges can be achieved, making this range extremely efficient. What's more, there is also have a variable speed variation with proven controls.
Swimming pool circulation through a filter system. The pump can be installed max. 3 m above or below the water level.
Monoblock-type pump with integrated strainer tank. Motor/pump shaft has no contact with the pool water, providing complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
