Useful assembly aid for installing the mechanical seal, 14 mm, safely on the impeller shaft of the pump. For Speck BADU pool circulation pumps series BADU Picco, BADU Magic, BADU Eco Touch-pro, BADU Top, BADU Top S, Bettar, Super Pump 8 - Super Pump 14, Super Pump Premium 6 - Super Pump Premium 15, BADU 40/6 - BADU 40/11, BADU 90/7 - BADU 90/13, BADU Prime 7 - BADU Prime 13, BADU EasyFit 9 - BADU EasyFit 18, BADU Bronze 7 - BADU Bronze 15, BADU FA 42/6, BADU FA 42/9, BADU 42/6, BADU 42/9, BADU 42/12, BADU 73-1, BADU 73-2, BADU 44/4 - BADU 44/15, BADU 45/6 - BADU 45/16, BADU 46/5 - BADU 46/22, BADU 47/5 - BADU 47/22, BADU 21-40, BADU 21-41, BADU Star NOTICE BY SPECK PUMPS: Before turning the pump on after a long period of disuse (e.g. winter), check to make sure that it can be moved easily. To do this, rotate the motor shaft lightly with the help of a screwdriver. Should the motor stick at all, this will loosen it. Should the pump still remain tight or an unusual noise become audible, have the pump examined by a trained professional

Capacitor without bolt, 12 µF +/- 5%, S3, 50-60 Hz, for BADU Top S II/12 (from approx. 08/2023), Super Pump Premium 12, Aqua Plus 8, Trend 90, Aqua Plus 11, Trend 110, Aqua Maxi 5, Aqua Maxi 10, Aqua Master 10, Aqua Master 14, BADU EasyFit 9 We., BADU EasyFit 12 We., BADU SuperPro 8, BADU SuperPro 9, BADU SuperPro 11, BADU SuperPro12, BADU 45/6, BADU 46/5, BADU 46/10, BADU 47/5, BADU 47/10, Belstar  7, Belstar 50 M, Belstar 10, Belstar 75 M, AquaViva 8, AquaViva 12, PPL Smart 10, Super-Pump 8 LC, Super-Pump 12 LC, BADU Top II/8 LC, BADU Top II/12 LC, Filterpumpe MP  8 LC, Comfort II/8 LC, Waterstar SP115-1, BluePump 12, SUNVAL 11-M, Whitestar 9, Enviro 11, Pro-Pump 11, BADU Magic II/11 LC, Smart II/11 LC BEHNCKE, Filterpumpe MP 12 LC, Comfort II/12 LC, CP Top 50 LC, as replacement for broken motor capacitors. Dimensions:  40 x 63 mm, flexible strands 100 mm, 10 mm stripped.  Possible signs of malfunctioning: motor only hums, but does not start, if it is not started manually by pushing the motor fan wings

Capacitor without bolt, 12 µF +/- 5%, S3, 50-60 Hz, for BADU Top S II/8 (from approx. 08/2023), Super Pump Premium 12, Aqua Plus 8, Trend 90, Aqua Plus 11, Trend 110, Aqua Maxi 5, Aqua Maxi 10, Aqua Master 10, Aqua Master 14, BADU EasyFit 9 We., BADU EasyFit 12 We., BADU SuperPro 8, BADU SuperPro 9, BADU SuperPro 11, BADU SuperPro12, BADU 45/6, BADU 46/5, BADU 46/10, BADU 47/5, BADU 47/10, Belstar  7, Belstar 50 M, Belstar 10, Belstar 75 M, AquaViva 8, AquaViva 12, PPL Smart 10, Super-Pump 8 LC, Super-Pump 12 LC, BADU Top II/8 LC, BADU Top S II/12 LC, BADU Top II/12 LC, Filterpumpe MP  8 LC, Comfort II/8 LC, Waterstar SP115-1, BluePump 12, SUNVAL 11-M, Whitestar 9, Enviro 11, Pro-Pump 11, BADU Magic II/11 LC, Smart II/11 LC BEHNCKE, Filterpumpe MP 12 LC, Comfort II/12 LC, CP Top 50 LC, as replacement for broken motor capacitors. Dimensions:  40 x 63 mm, flexible strands 100 mm, 10 mm stripped.  Possible signs of malfunctioning: motor only hums, but does not start, if it is not started manually by pushing the motor fan wings

Capacitor without bolt, 16 µF +/- 5%, S0, 50-60 Hz, for Super Pump 14 (until 12/16), BADU Magic 8, BADU Magic 11, Bettar 12, BADU Top 12, Super Pump 12, BADU 90/13, BADU Bronze 14, BADU 40/6 (since 1/95 for 0,3 kW), BADU 40/7 (since 1/95 for 0,3 kW), BADU 42/6 (since 1/95 for 0,3 kW), BADU 90/7 (since 1/95 for 0,3 kW), BADU Star 69 (since 1/95 for 0,3 kW), BADU Bronze 7 (since 1/95 for 0,3 kW), BADU 40/9 (since 1/95), BADU 40/11 (since 1/95), BADU 42/9 (since 1/95), BADU Bronze 11 (since 1/95), BADU 90/11 (since 1/95), BADU Star 913 (since 1/95), as replacement for broken motor capacitors Possible signs of malfunctioning: motor only hums, but does not start, if it is not started manually by pushing the motor fan wings

Capacitor with bolt, 16 µF +/- 5%, S0, 50-60 Hz, for BADU Top 14, BETTAR 14, Super Pump 14 (until 12/16), BADU Magic 8, BADU Magic 11, Bettar 12, BADU Top 12, Super Pump 12, BADU 90/13, BADU Bronze 14, BADU 40/6 (since 1/95 for 0,3 kW), BADU 40/7 (since 1/95 for 0,3 kW), BADU 42/6 (since 1/95 for 0,3 kW), BADU 90/7 (since 1/95 for 0,3 kW), BADU Star 69 (since 1/95 for 0,3 kW), BADU Bronze 7 (since 1/95 for 0,3 kW), BADU 40/9 (since 1/95), BADU 40/11 (since 1/95), BADU 42/9 (since 1/95), BADU Bronze 11 (since 1/95), BADU 90/11 (since 1/95), BADU Star 913 (since 1/95) as replacement for broken motor capacitors Possible signs of malfunctioning: motor only hums, but does not start, if it is not started manually by pushing the motor fan wings

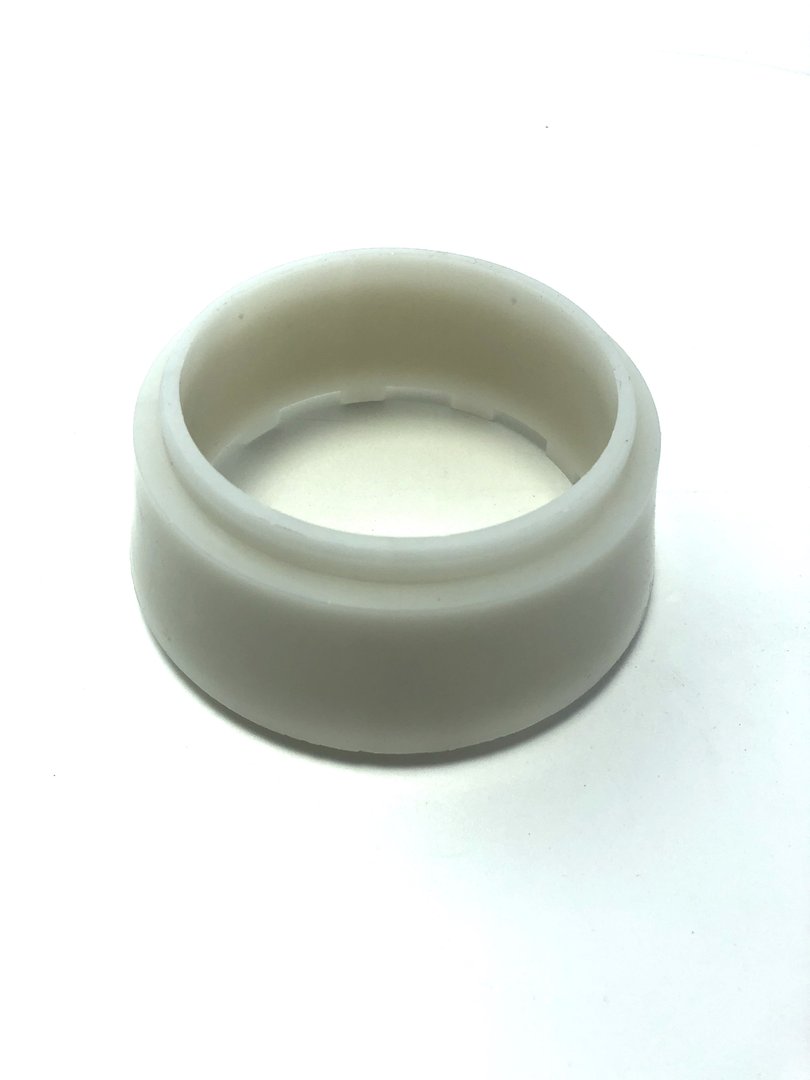

Centring ring for Super Pump 8, Super Pump 12, Super Pump 14, Filterpump MP 8, MP 10, MP 12 and MP 14, Bettar 8, Bettar 12, Bettar 14, BADU Top 8, BADU Top 12, BADU Top 14, BADU Top II/8, BADU Top II/12, BADU Top II/14, Pos. 511

Connection set complete, 50 mm and 63 mm, for BADU Top S II/8, BADU Top S II/12, BADU Top S II/14, Swim-tec Super Pump 8, Super Pump 12, Super Pump 14, Filterpump MP 8, MP 10, MP 12 and MP 14, consisting of: 1 x union nut for dia = 50 mm 1 x union nut for dia = 63 mm 1 x glue socket dia = 50 mm 1 x glue socket dia = 63 mm 1 x o-ring 50 x 3 mm 1 x o-ring 68 x 3.5 mm

Diffuser for Super Pump 8, Super Pump 12, Super Pump 14, Filterpump MP 8, MP 10, MP 12 and MP 14, BETTAR, BADU Top and BADU Top II, all models, Pos. 174.2

Drain cap, G 3/8, yellow, with gasket, for Super Pump 8, Super Pump 12, Super Pump 14, BADU Top S II/8, BADU Top S II/12, BADU Top S II/14, Filterpump MP 8, MP 10, MP 12 and MP 14, Pos. 903

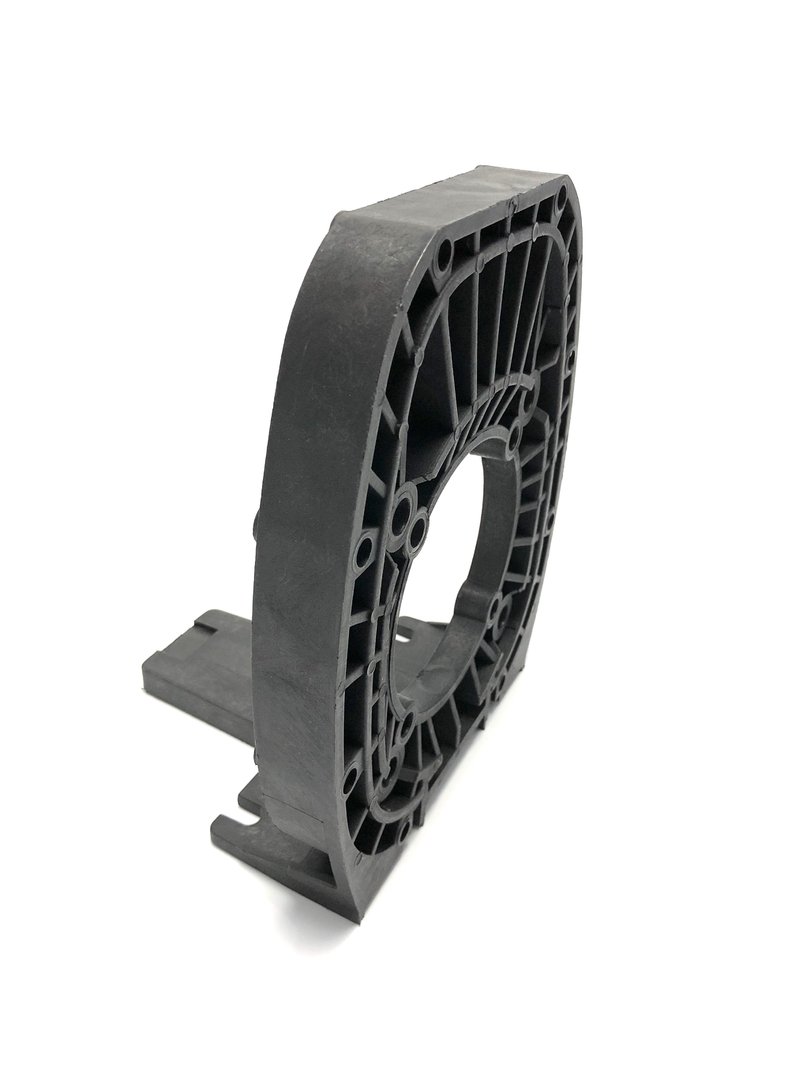

Flange for Super Pump 8, Super Pump 12, Super Pump 14, Filterpump MP 8, MP 10, MP 12 and MP 14, Bettar, BADU Top and BADU Top II, Pos. 113

Gland housing for BADU Top S II/8, BADU Top S II/12, BADU Top S II/14, Swim-tec Super Pump 8, Super Pump 12, Super Pump 14, Filterpump MP 8, MP 10, MP 12 and MP 14, Pos. 161.2

Housing complete, black, consisting of housing, strainer basket, ring for lid, transparent lid with o-ring, drain cap, for BADU Top S II/8, BADU Top S II/12, BADU Top S II/14, SWIM-TEC Super Pump 8, Super Pump 12, Super Pump 14,  BADU Eco Touch-Pro, Meranus Filterpump MP 8, MP 10, MP 12, MP 14, Pos. 101

Impeller, dia = 112 mm, b = 6.5 mm, for Super Pump 12, Filterpump MP 12, BETTAR 12, BADU Top 12 and BADU Top II/12, Pos. 230

Impeller, dia = 112 mm, b = 8.5 mm, for Super Pump 14, Filterpump MP 14, BETTAR 14, BADU Top 14, BADU Top II/14, Eurostar 100, Pos. 230

Impeller, dia = 112 mm, b = 4.5 mm, for Super Pump 8, Filterpump MP 8, BETTAR 8, BADU Top 8 and BADU Top II/8, Pos. 230

Kondensator ohne Bolzen, 16 µF +/- 5%, S0, 50-60 Hz, für BADU Magic 8, BADU Magic 11, Bettar 12, BADU Top 12, Super Pump 12, BADU 90/13, BADU Bronze 14, BADU 40/6 (ab 1/95 für 0,3 kW), BADU 40/7 (ab 1/95 für 0,3 kW), BADU 42/6 (ab 1/95 für 0,3 kW), BADU 90/7 (ab 1/95 für 0,3 kW), BADU Star 69 (ab 1/95 für 0,3 kW), BADU Bronze 7 (ab 1/95 für 0,3 kW), BADU 40/9 (ab 1/95), BADU 40/11 (ab 1/95), BADU 42/9 (ab 1/95), BADU Bronze 11 (ab 1/95), BADU 90/11 (ab 1/95), BADU Star 913 (ab 1/95), als Ersatz für defekte Motorkondensatoren Mögliches Schadensbild: Motor brummt nur, läuft aber nicht an, sofern er nicht manuell am Lüfterrad angeschoben wird. Im Zweifel, welcher Kondensator für Ihre Pumpe geeignet ist, bitte das Typenschild mit Seriennummer übermitteln!

Kondensator ohne Bolzen, 20 µF +/- 5%, S0, 50-60 Hz, Litzenlänge 150 mm, für Super Pump 14 (ab ca. 01/17), Bettar 14 (ab ca. 01/17), BADU Top 14 (ab ca. 01/17), BADU Top II/14 (ab ca. 01/17), als Ersatz für defekte Motorkondensatoren Mögliches Schadensbild: Motor brummt nur, läuft aber nicht an, sofern er nicht manuell am Lüfterrad angeschoben wird. Im Zweifel, welcher Kondensator für Ihre Pumpe geeignet ist, bitte das Typenschild mit Seriennummer übermitteln!

Kondensator ohne Bolzen, 16 µF +/- 5%, S0, 50-60 Hz, für Super Pump 8, als Ersatz für defekte Motorkondensatoren Mögliches Schadensbild: Motor brummt nur, läuft aber nicht an, sofern er nicht manuell am Lüfterrad angeschoben wird. Im Zweifel, welcher Kondensator für Ihre Pumpe geeignet ist, bitte das Typenschild mit Seriennummer übermitteln!

Kugellager für Super Pump 12 Umwälzpumpen, A-seitig (Pumpenseite), C3GJN-mit speziellem Schmierfett (Einsatzbereich bis zu ca. 150°C)

Kugellager für Super Pump 14, A-seitig (Pumpenseite), C3GJN-mit speziellem Schmierfett (Einsatzbereich bis zu ca. 150°C)

Kugellager für Super Pump 8, A-seitig (Pumpenseite), C3GJN-mit speziellem Schmierfett (Einsatzbereich bis zu ca. 150°C)

Kugellager für Super Pump 12, B-seitig (Lüfterseite), C3GJN-mit speziellem Schmierfett (Einsatzbereich bis zu ca. 150°C)

Kugellager für Super Pump 14, B-seitig (Lüfterseite), C3GJN-mit speziellem Schmierfett (Einsatzbereich bis zu ca. 150°C)

Kugellager für Super Pump 8, B-seitig (Lüfterseite), C3GJN-mit speziellem Schmierfett (Einsatzbereich bis zu ca. 150°C)
